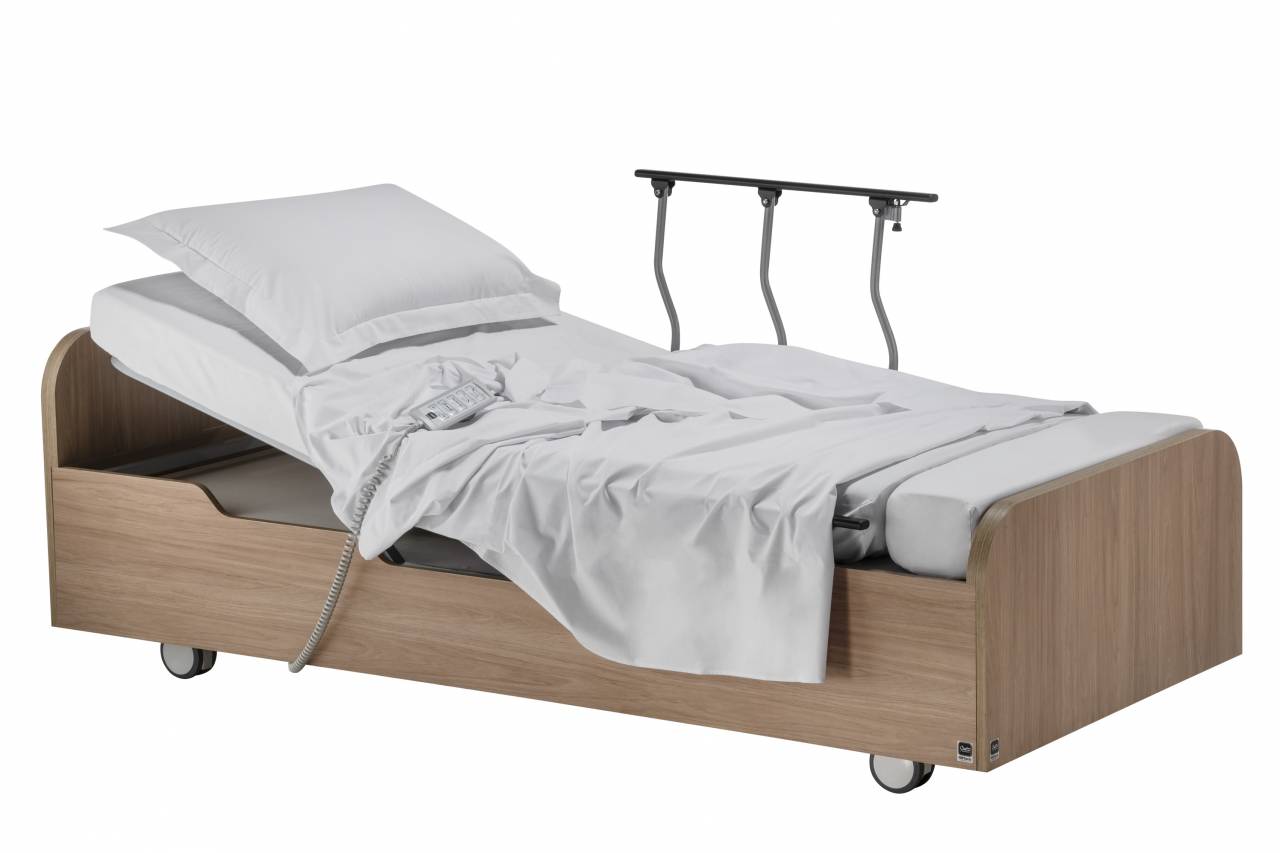

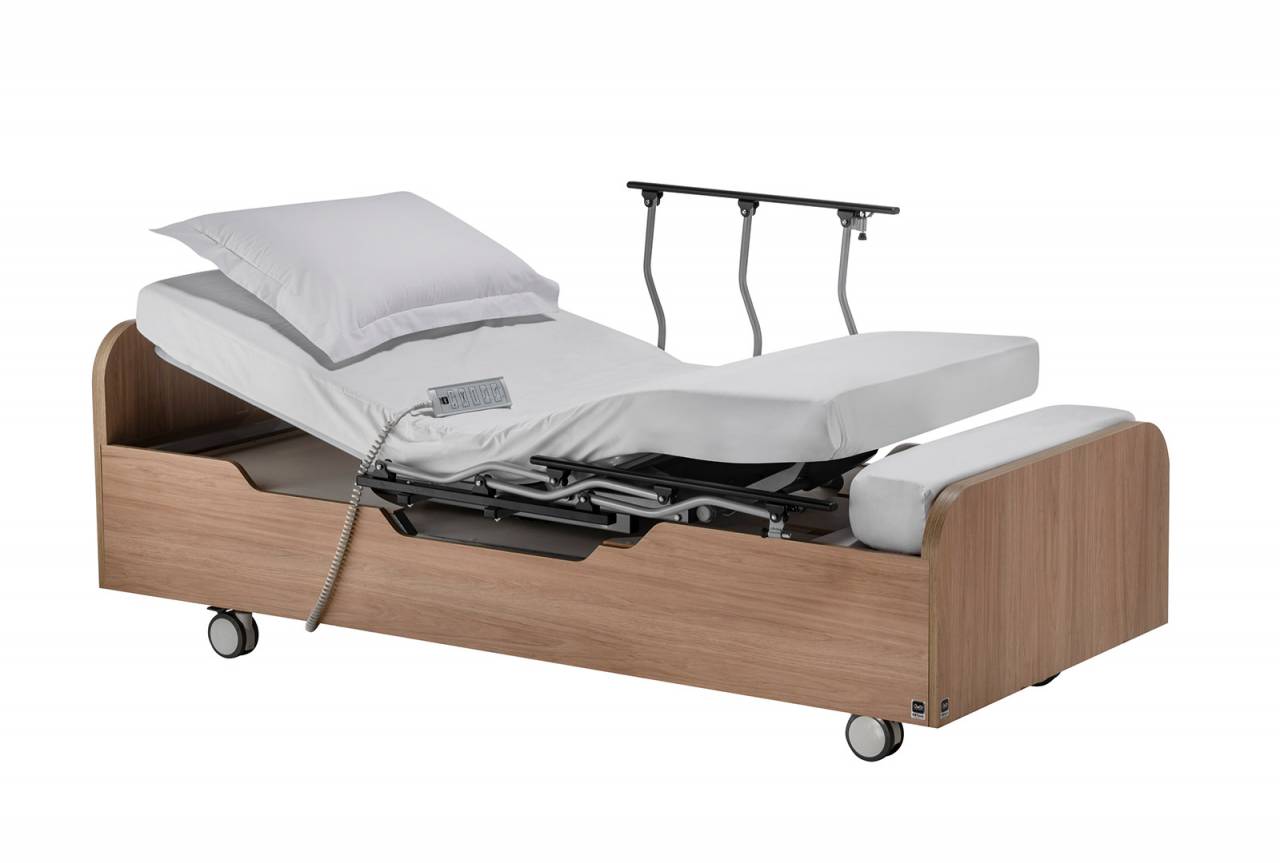

Motorized Giro Bed 2200

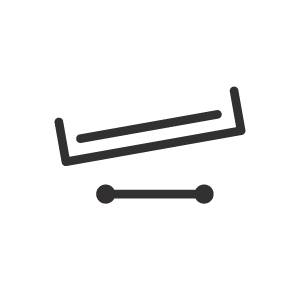

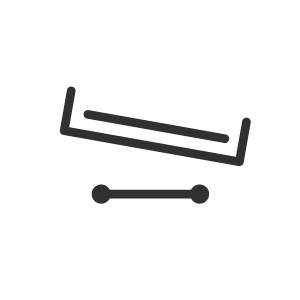

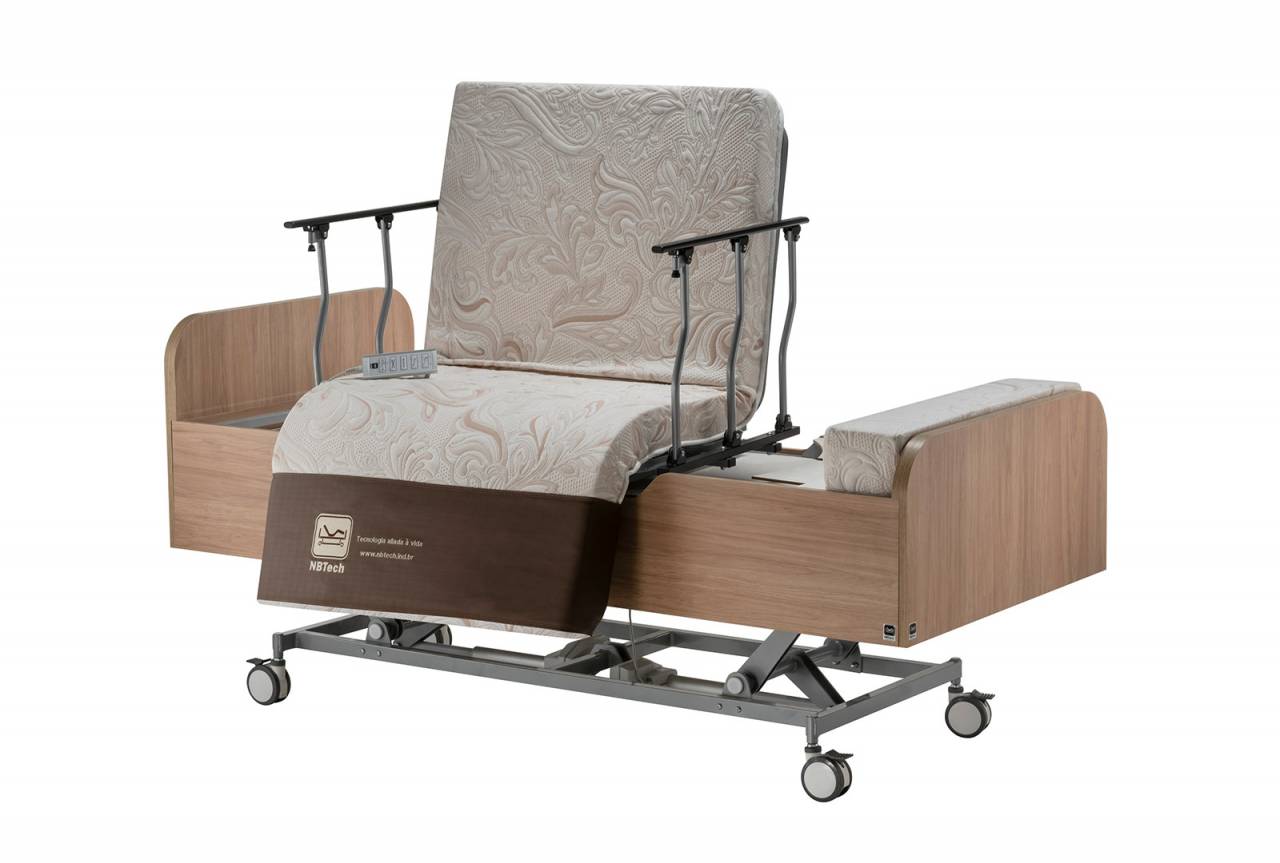

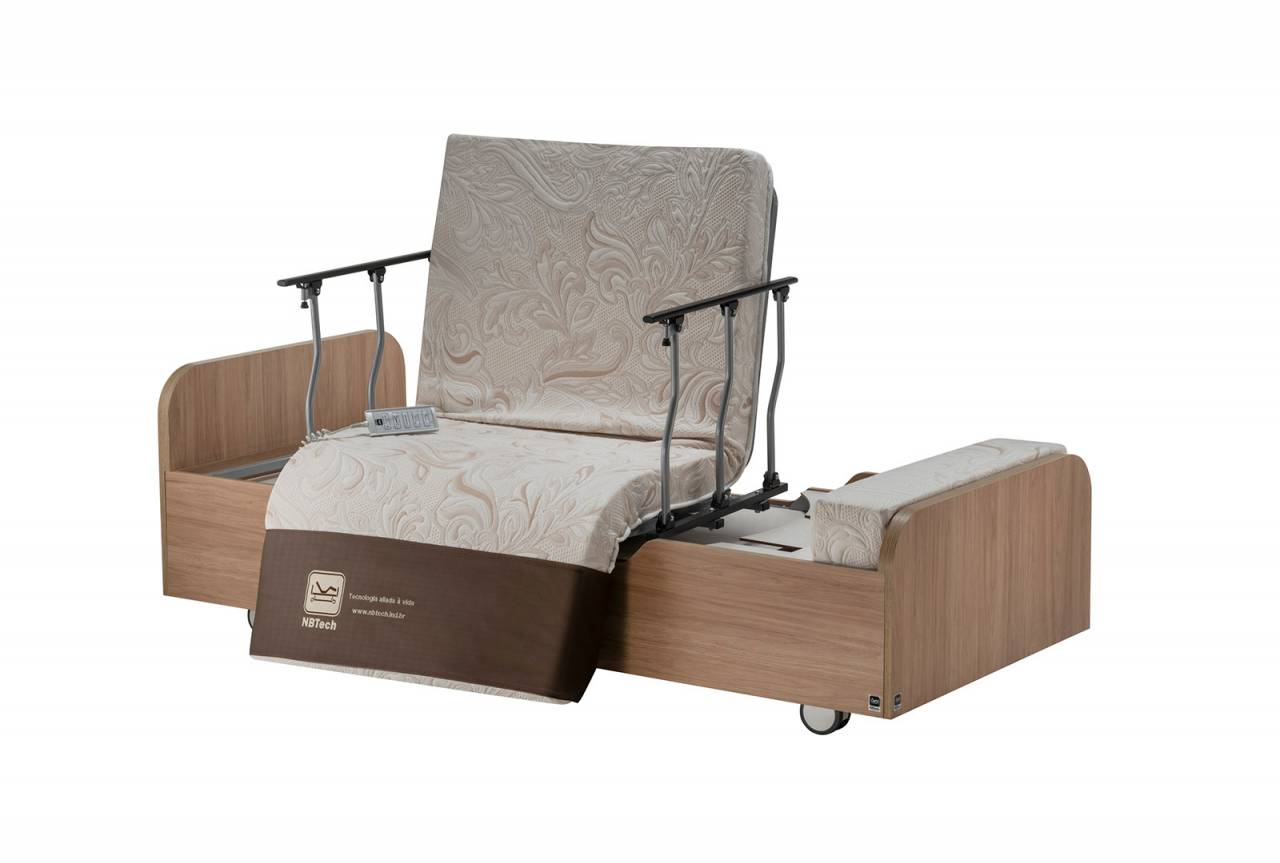

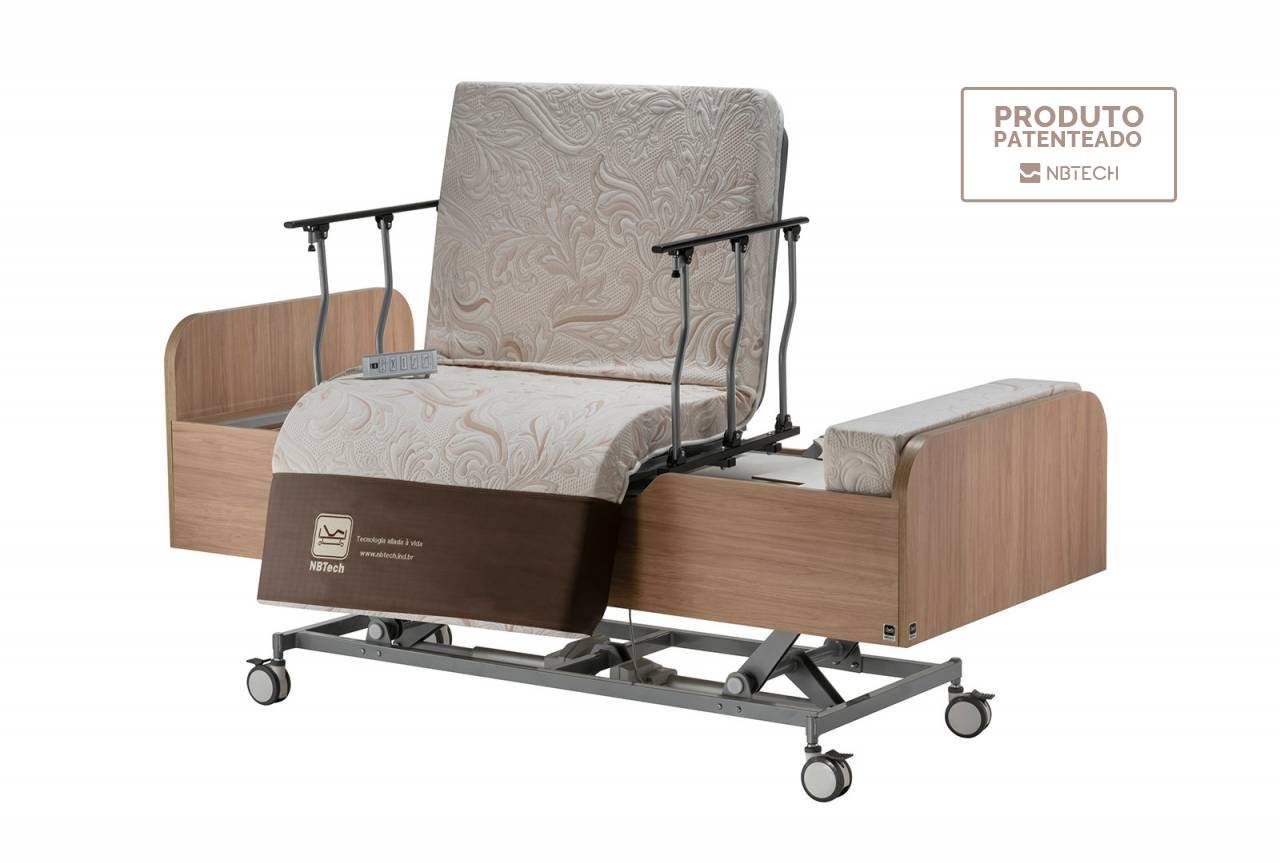

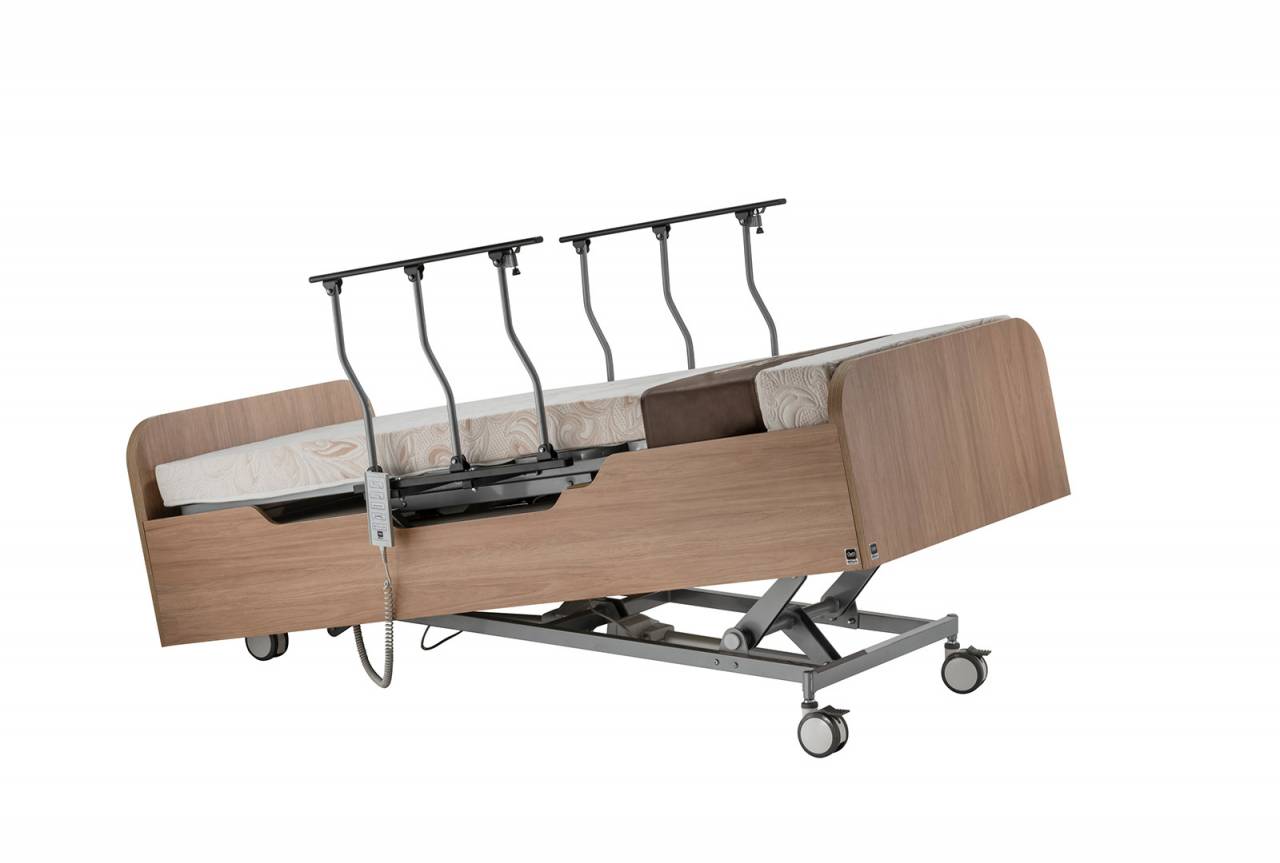

Motorized bed with elevation, trendelenburg, proclive and rotation.
Our products are fabricated following the Inmetro norms standards:
- ABNT NBR IEC 60601-1:2010/AMD1:2016;
- ABNT NBR IEC 60601-1-2:2017;
- ABNT NBR IEC 60601-2-52:2013;
- ABNT NBR IEC 60601-1-6:2010/AMD1:2013;
- ABNT NBR IEC 60601-1-9:2010/AMD1:2014 (Itens 4.1/4.5.2/4.5.3);
- ABNT NBR IEC 62366:2007/AMD 1:2014;
INMETRO ordinance n. 54 of 01/02/2016.

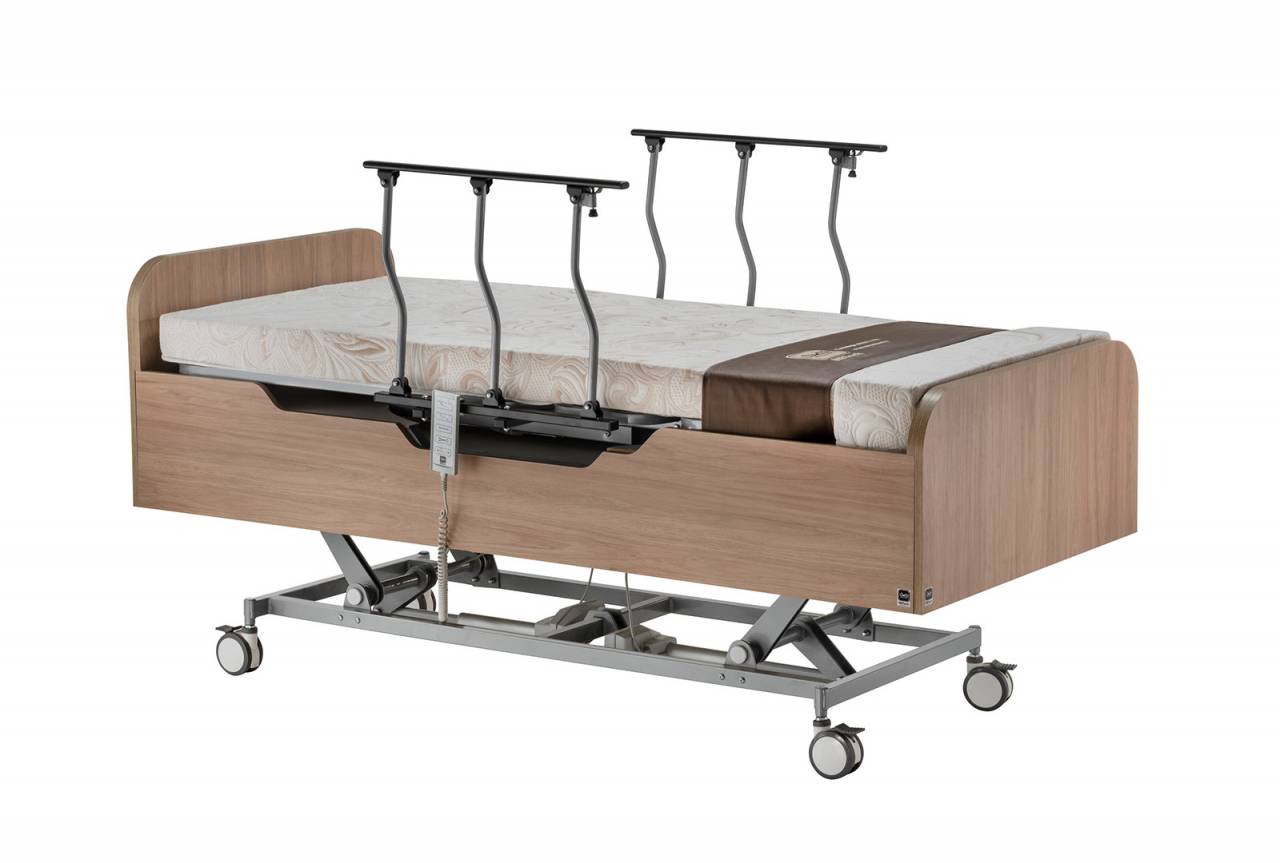

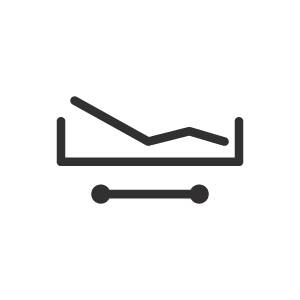

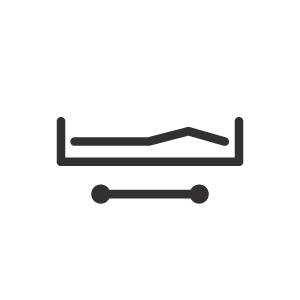

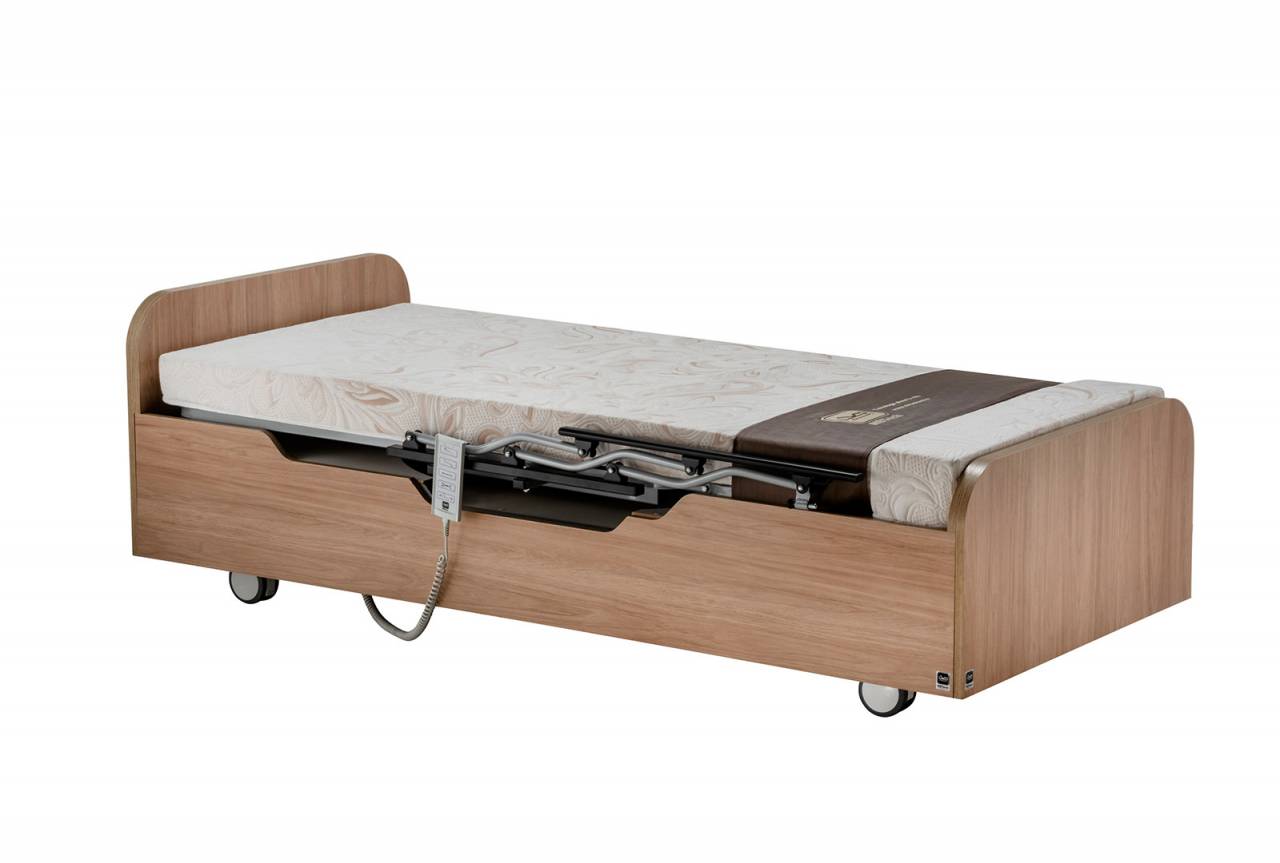

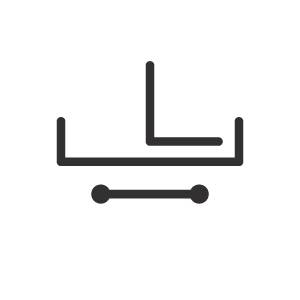

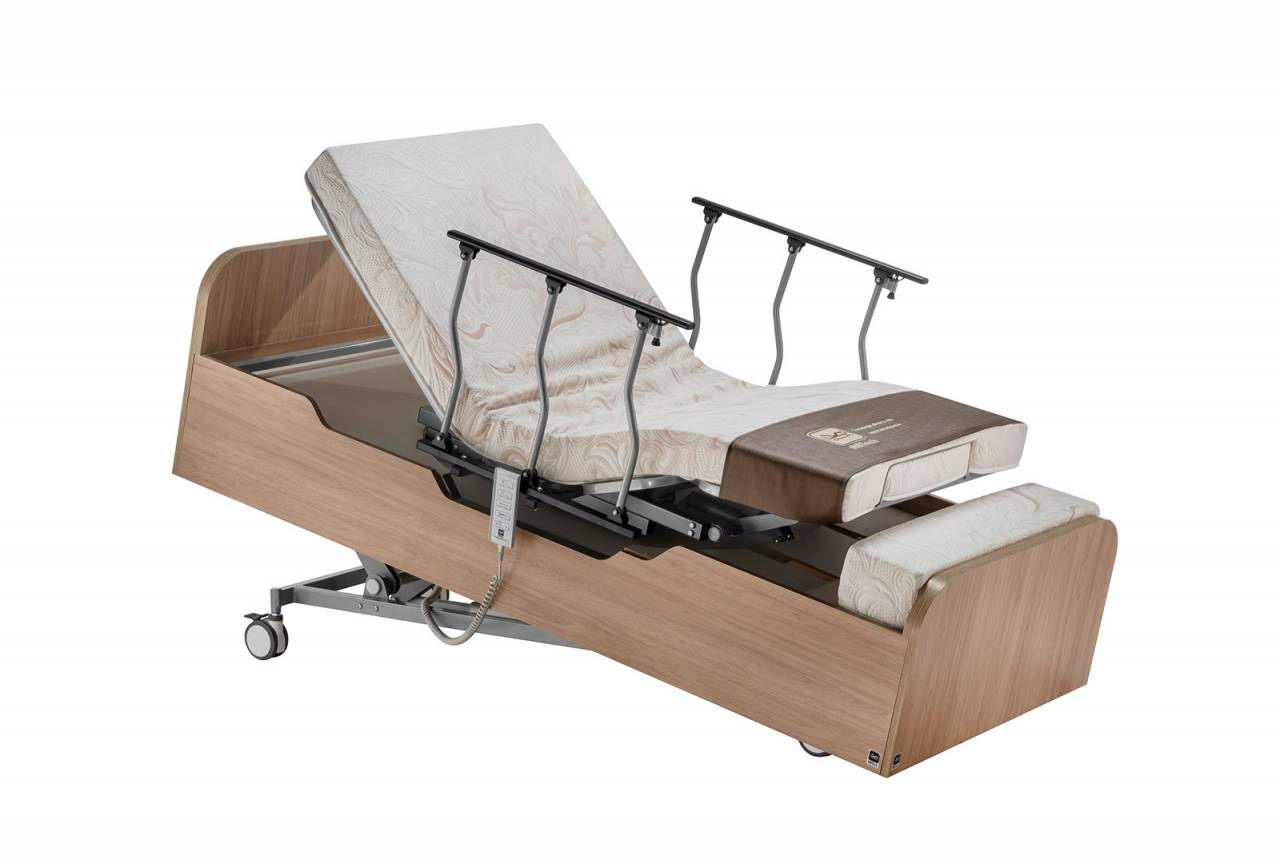

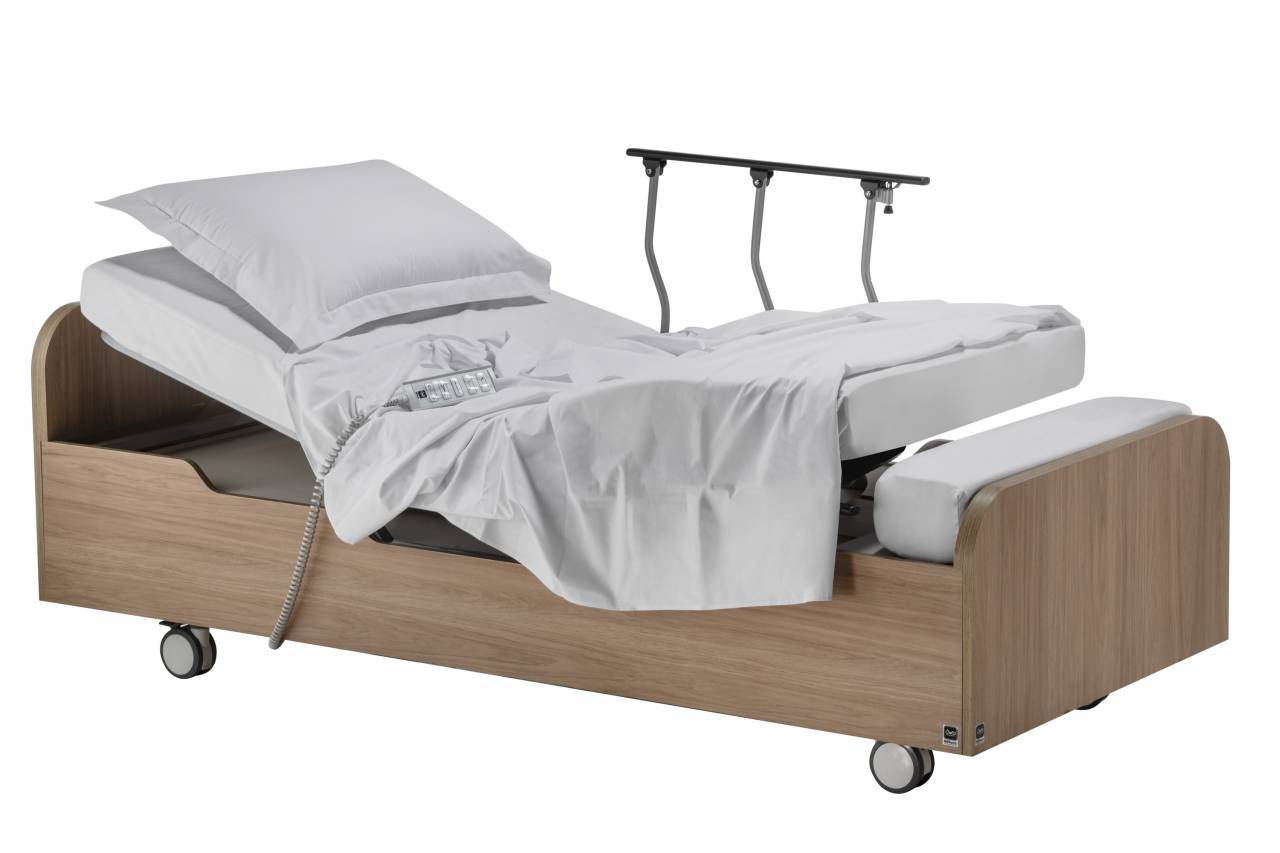

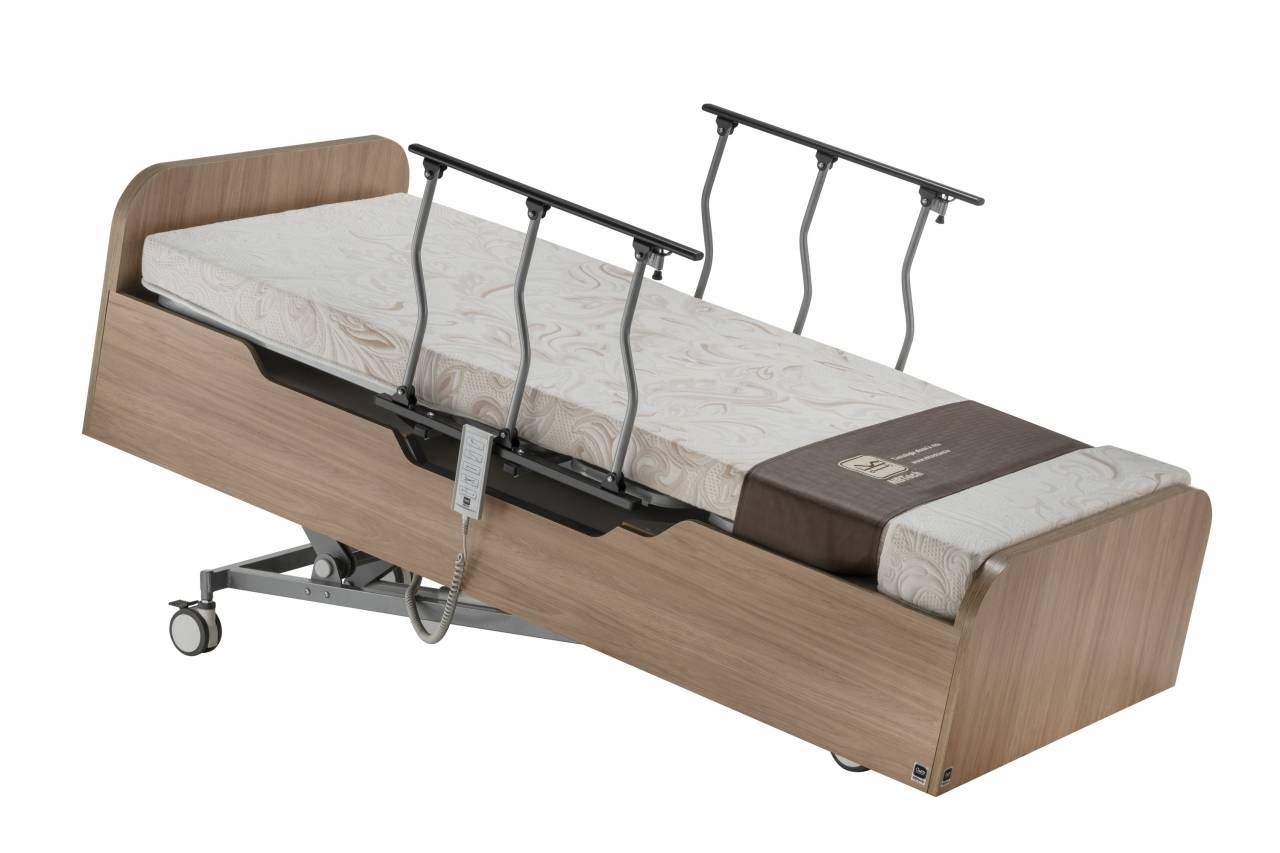

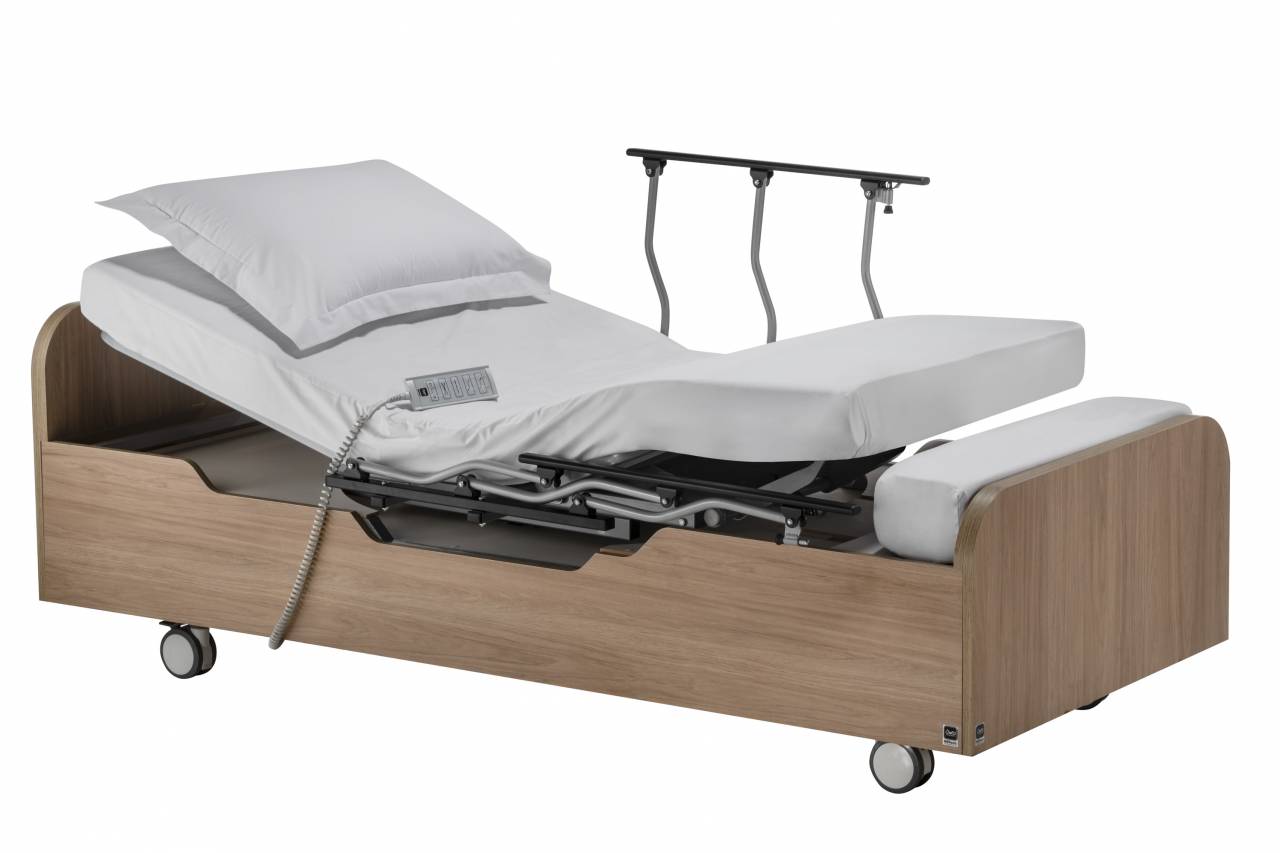

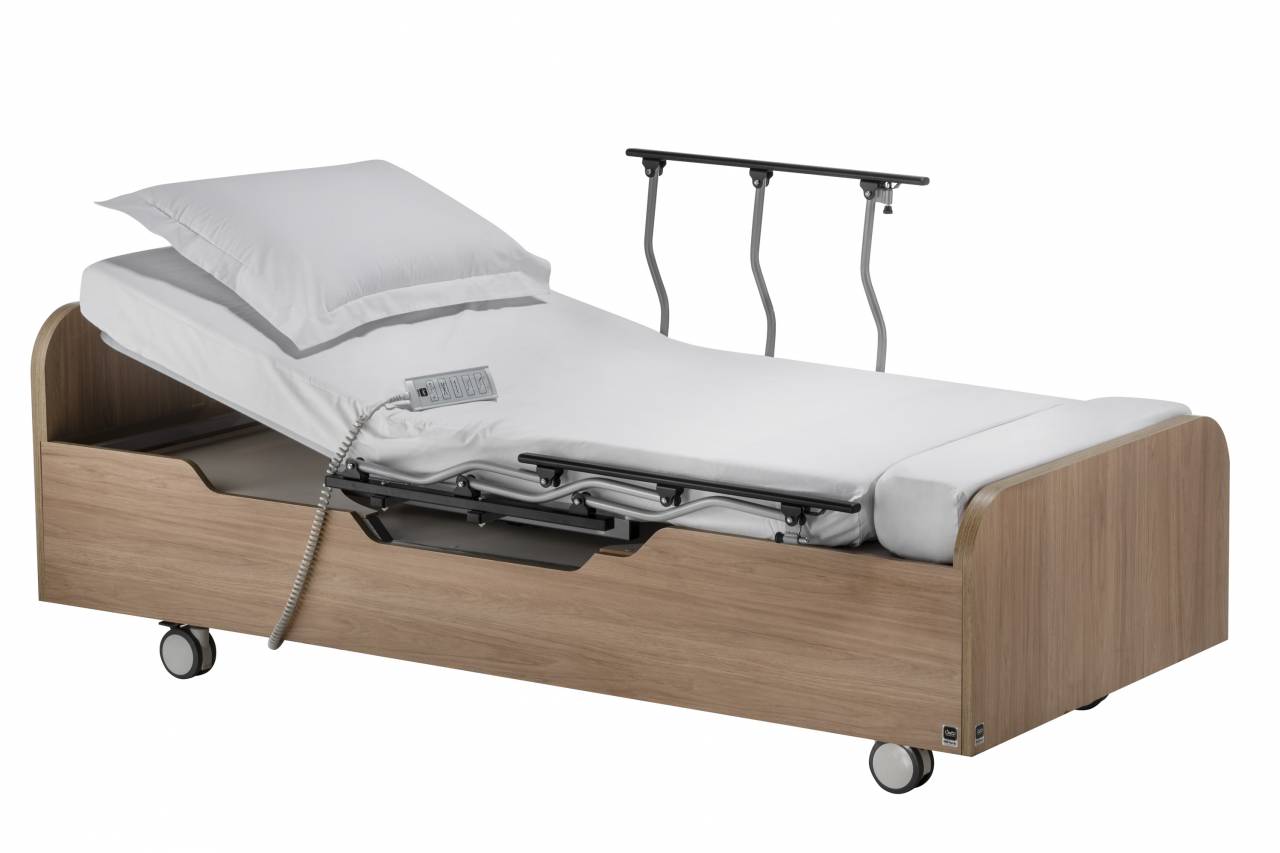

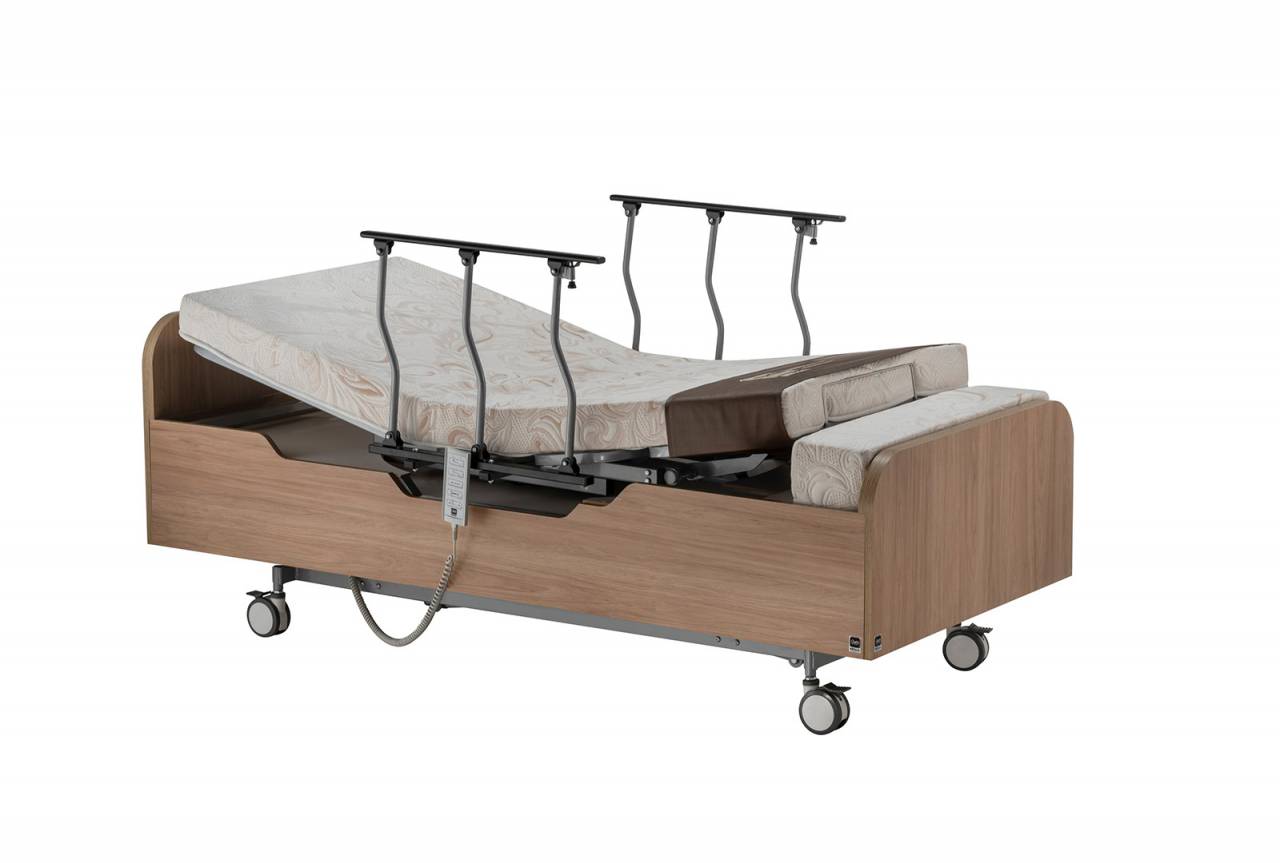

Home Care bed with elevation, finishing in wood with 5 motors and 11 positions.
• Box bed in MDF - Finishing in wood (options according the card);
• Bed chassis (superior) built in carbon steel tubes;
• Articulated carbon steel tube bed-frame coated in MDF;
• Side stackable rails in carbon steel, facilitating patient access, equipped with a safety system that locks and unlocks (item sold separately);
• Bed chassis (inferior) built in carbon steel tubes;
• Surface treatment consists by process of pickling, degreasing, phosphating, powder electrostatic painting with epoxy-polyester resin, polymerized in an oven at 200 degrees centigrade, excellent chemical and mechanical resistance;
• Power supply: 100-240V – 50/60 Hz (bi-volt);
• Remote control with wire – IPX6;
• Optional battery;
• Comes with 4" rotation, with diagonal double-acting brake or fixed feet.
1. Mattress (1,77+ 0,19)=1,96 x 0,88 x 0,11);
2. Side stackable rails;
3. Battery.
The movements are carried out by pressing the buttons of the handheld remote control with wire.
Maximum capacity  130kg
Dimensions 2030x936mm
Useful area 1988x900mm
Minimum height 430mm
Maximum height 730mm
